Compare Classic America Mini Splits and Window ACs

Every system in the lineup with every published spec in one table. Figures come from each model's spec sheet; where a sheet does not confirm a figure we say so rather than estimate it.

The table is the spec sheets in one view. Each column is a Classic America system, and each row is a figure those sheets publish: capacity, efficiency, voltage, coverage, line set, sound, and the other rows on the page. If a sheet does not confirm a number, the cell says so instead of borrowing one from a different model. Window units and mini splits are different machines, so some rows apply to only one of them. Use the table when you are choosing between two sizes, then open the product page before you buy. Coverage on the site follows the published maximum for that model. A sunny room or a tall ceiling can still need a different size, which is what the size finder is for.

7 systems
From the manufacturer spec sheets
Scroll sideways on mobile

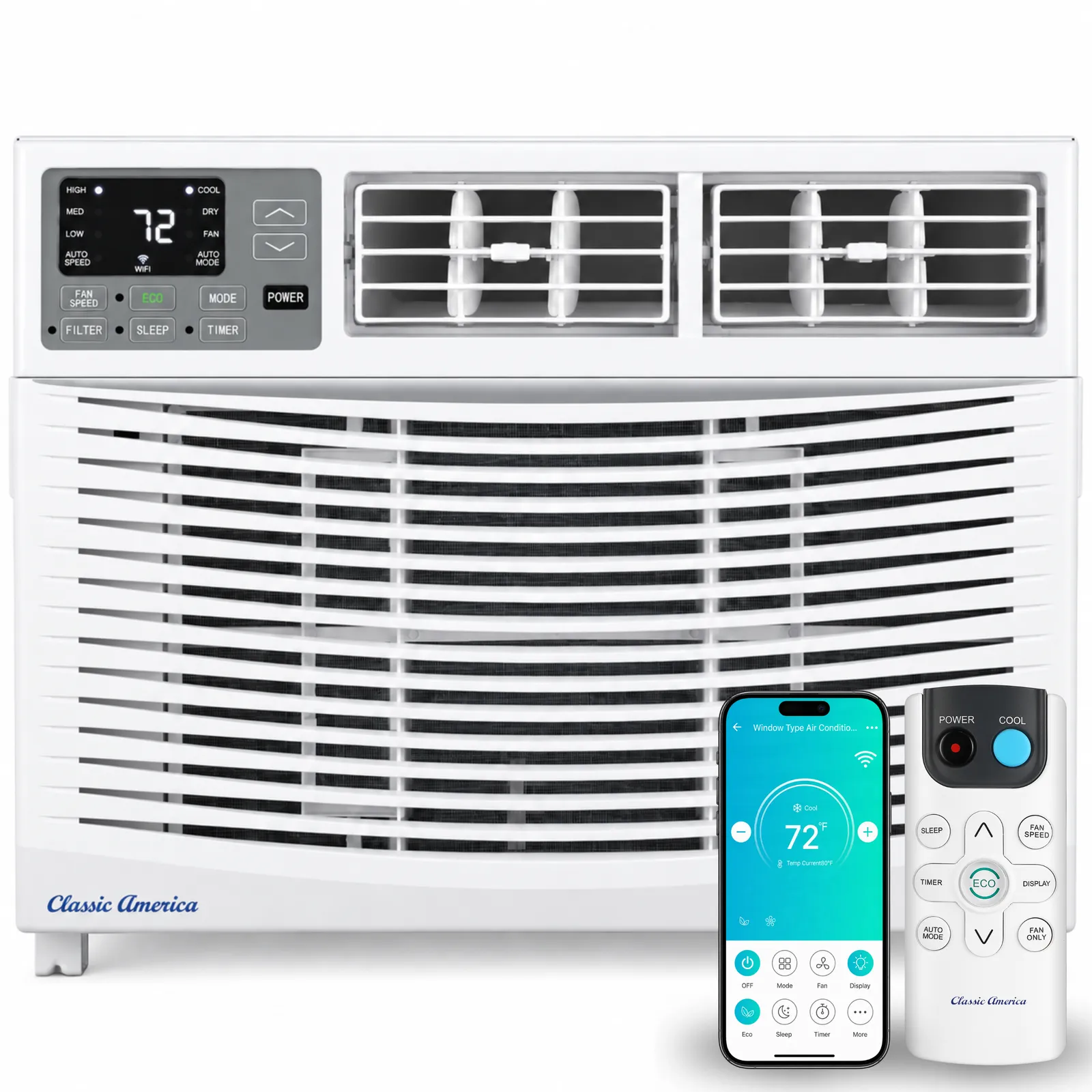

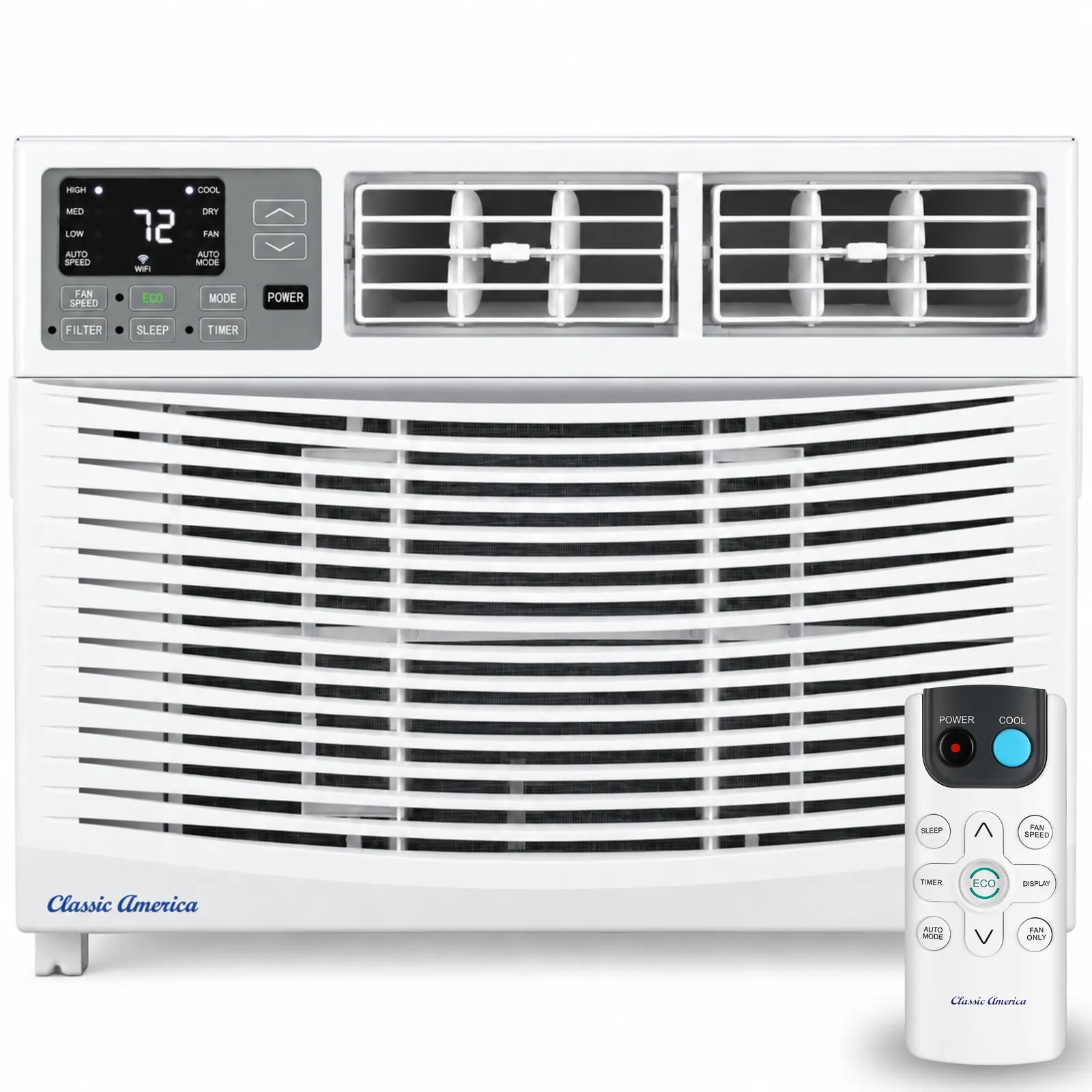

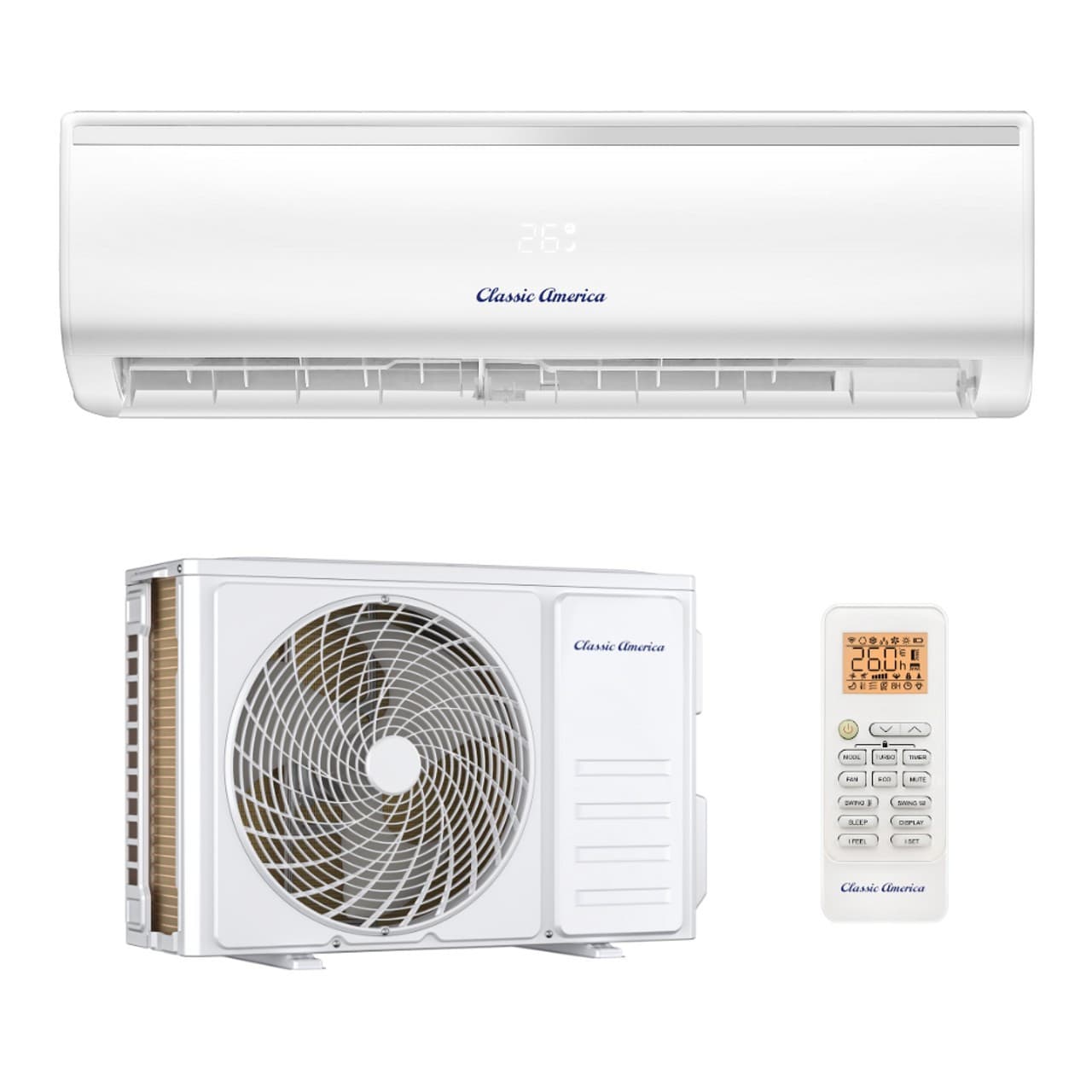

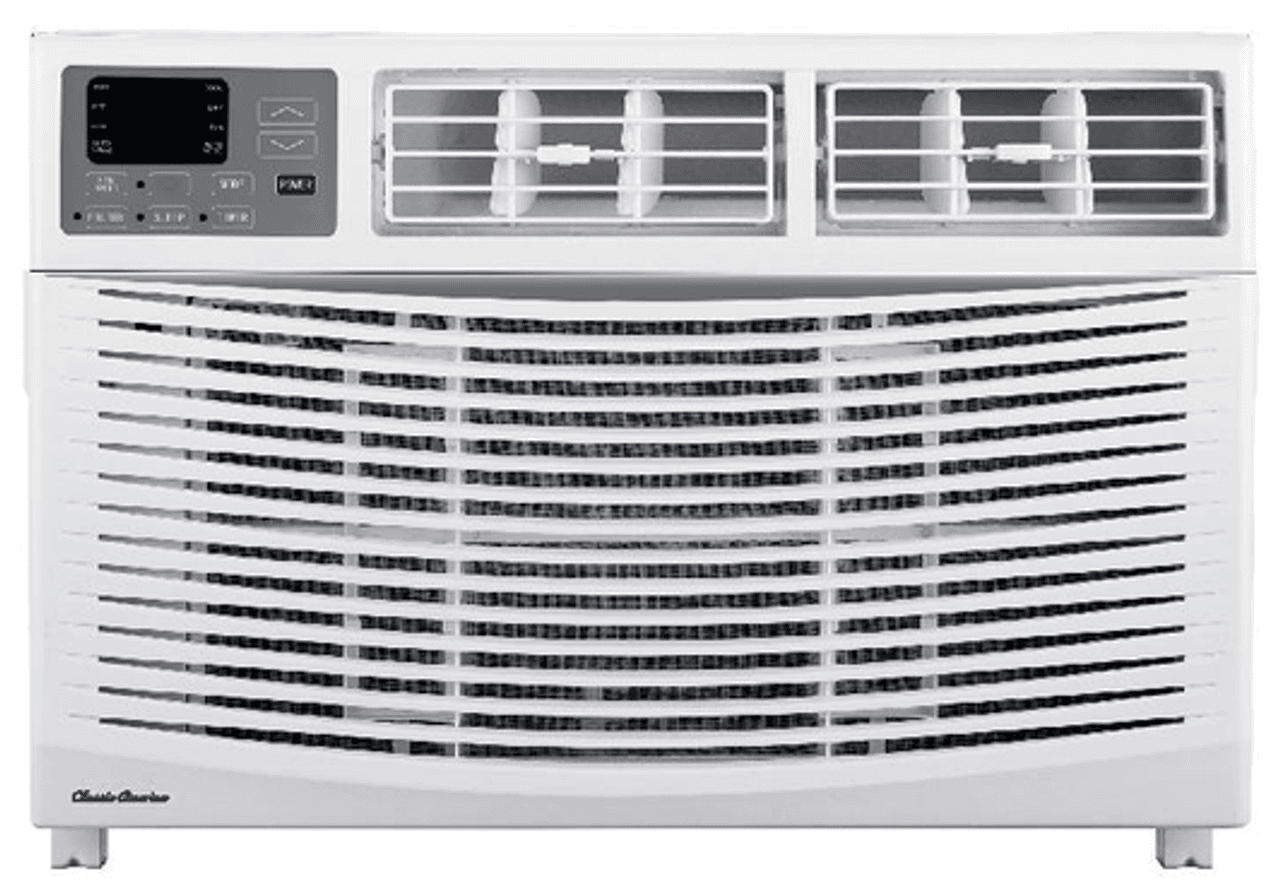

	9,000 BTU mini splitMSCT-09HAC1$695 ~~$825~~	12,000 BTU mini splitMSC-12HAC1$735 ~~$995~~	12,000 BTU mini split, 17 SEER2MSCR32-12CHSA1$769.50	23,000 BTU mini splitMSCR32-23CHSA2$1,450	DUET 2-zoneMZR454B-DUETSERIES$2,065	8,000 BTU window ACTWC-08CRD1/L0U$294 ~~$325~~	12,000 BTU window ACTWC-12CRD1/L0U$385
Capacity and efficiency
Cooling	9,000 BTU	12,000 BTU	11,500 BTU	23,000 BTU	18,000 BTU	8,000 BTU	12,000 BTU
Heating	9,500 BTU	12,200 BTU	11,500 BTU	22,400 BTU	20,000 BTU	Cooling only	Cooling only
Heating at 5°F	7,000 BTU	8,600 BTU	8,000 BTU	12,000 BTU	16,000 BTU	n/a	n/a
SEER2	23	19	17	17	24	n/a	n/a
CEER	n/a	n/a	n/a	n/a	n/a	10.9	10.9
EER2	12.5	10	9.5	9.5	13	12.1	12.1
HSPF2 Region IV	9	7.5	9.5	9.5	10.5	n/a	n/a
HSPF2 Region V	7.76	7.2	8.1	8.5	9.5	n/a	n/a
ENERGY STAR	Certified, Most Efficient, Cold Climate (ID 2538379)	No	No	No	Certified, Most Efficient, Cold Climate (ID 4510257)	No	No
Coverage	Up to 400 sq ft	Up to 550 sq ft	Up to 550 sq ft	Up to 1,400 sq ft	2 rooms, up to 400 sq ft each	300–350 sq ft	400–450 sq ft
Moisture removal	Not published	81.2 pints/day	Not published	122 pints/day	Not published	56 pints/day	86 pints/day
Power and refrigerant
Voltage	115V/60Hz/1P	115V/60Hz/1P	115V/60Hz/1P	208/230V/60Hz/1P	208/230V/60Hz/1P	115V/60Hz, 1Ph	115V/60Hz, 1Ph
Breaker	25A	25A	25A	25A	25A	15A	15A
Power cord length	n/a	n/a	n/a	n/a	n/a	4.9 ft	4.9 ft
Operating temperature range	see spec sheet	Indoor cooling 62°F and above / heating 86°F and below; outdoor cooling 5–122°F / heating -4–86°F	see spec sheet	see spec sheet	see spec sheet	see spec sheet	see spec sheet
Refrigerant	R410a	R410a	R32	R32	R454B	R32	R32
Sound
Indoor	27-42 dB(A)	27-42 dB(A)	29-43 dB(A)	37-50 dB(A)	30-43 dB(A) per 9K indoor head	53-58 dB(A)	55-59 dB(A)
Outdoor	50 dB(A)	52 dB(A)	53 dB(A)	56 dB(A)	58 dB(A)	n/a	n/a
Installation
Line sizes	3/8" gas, 1/4" liquid	3/8" gas, 1/4" liquid	3/8" gas, 1/4" liquid	1/2" gas, 1/4" liquid	3/8" gas, 1/4" liquid	n/a	n/a
Line set included	16 ft	16 ft	16 ft	16 ft	2 x 16 ft	n/a	n/a
Precharged to	25 ft	25 ft	25 ft	25 ft	25 ft per line	n/a	n/a
Maximum run	50 ft	50 ft	49 ft	65 ft	131 ft	n/a	n/a
Window width	n/a	n/a	n/a	n/a	n/a	23 to 36 in	26 to 36 in
Min. sash opening	n/a	n/a	n/a	n/a	n/a	14.5 in	16 in
Size and weight
Indoor unit (in)	32.28 x 12.05 x 7.68	31.92 x 11.49 x 8.07	30.59 x 7.91 x 9.84	39.6 x 12.6 x 9.18	32.28 x 7.68 x 12.05	18.58 x 15.59 x 13.31	19.76 x 21.5 x 15.16
Indoor weight (gross)	20.94 lb	20.9 lb	23 lb	33 lb	27 lb per indoor head	47.4 lb	70.55 lb
Outdoor unit (in)	28.66 x 12.01 x 21.65	28.14 x 11.42 x 19.61	30.98 x 11.42 x 19.61	32.5 x 13.5 x 23.5	36.5 x 14.96 x 27.52	n/a	n/a
Outdoor weight (gross, with line set)	51.81 lb	55.1 lb	60 lb	81.5 lb	123 lb	n/a	n/a

DUET SEER2, EER2 and HSPF2 are the published non-ducted ratings for the wall-mounted indoor units it ships with. Heating at 5°F is the published low-temperature capacity where the sheet gives one. Coverage follows the maximum of the matching band on the ENERGY STAR room air conditioner sizing chart (8 ft ceiling, average sun). The 12,000 BTU window unit uses the 400–450 sq ft band. DUET is two rooms, up to 400 sq ft each. Operating temperature is spelled out here for MSC-12HAC1 only.

The DUET outdoor unit alone is 103 lb. The 123 lb figure includes its two line sets and two interconnect cables.
DUET ships with 2 indoor heads in one large box, about 178 lb total.
The large shipping carton adds about 7–10 lb, and a pallet, if used, can add up to 30 lb.
