Home / Mini Splits / 12,000 BTU Mini Split Inverter with Heat Pump
Mini Splits / SKU MSCR32-12CHSA1
12,000 BTU Mini Split Inverter with Heat Pump
- Free freight shipping, arrives on a pallet in one box
- 30-day money back, uninstalled, original condition
- 5-year compressor, 1-year parts
What you need to install it
Licensed HVAC install is recommended. Read the delivery and installation guide.
Power
115V~/60Hz/1P

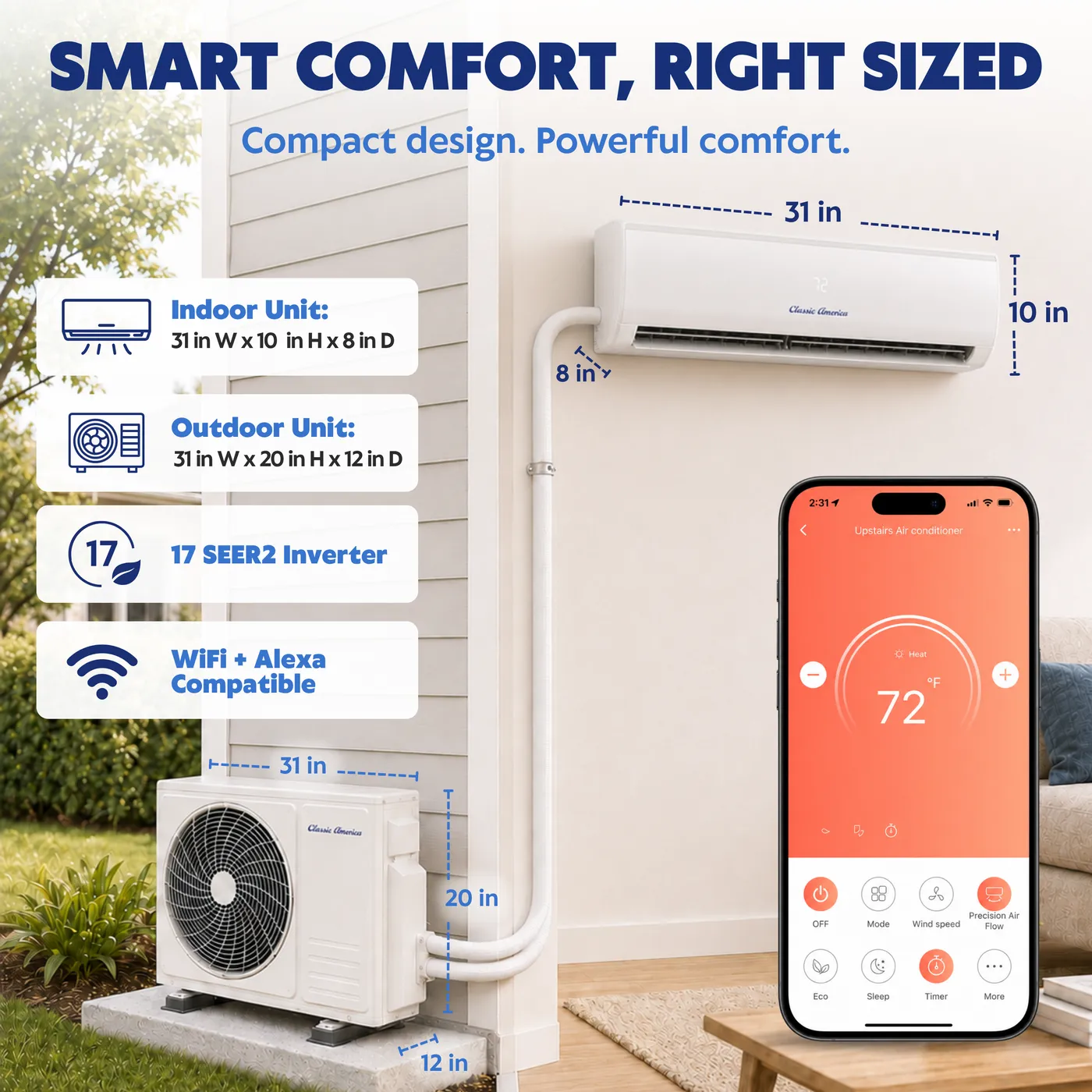

Indoor unit
30.59 x 7.91 x 9.84 in, 23 lb gross

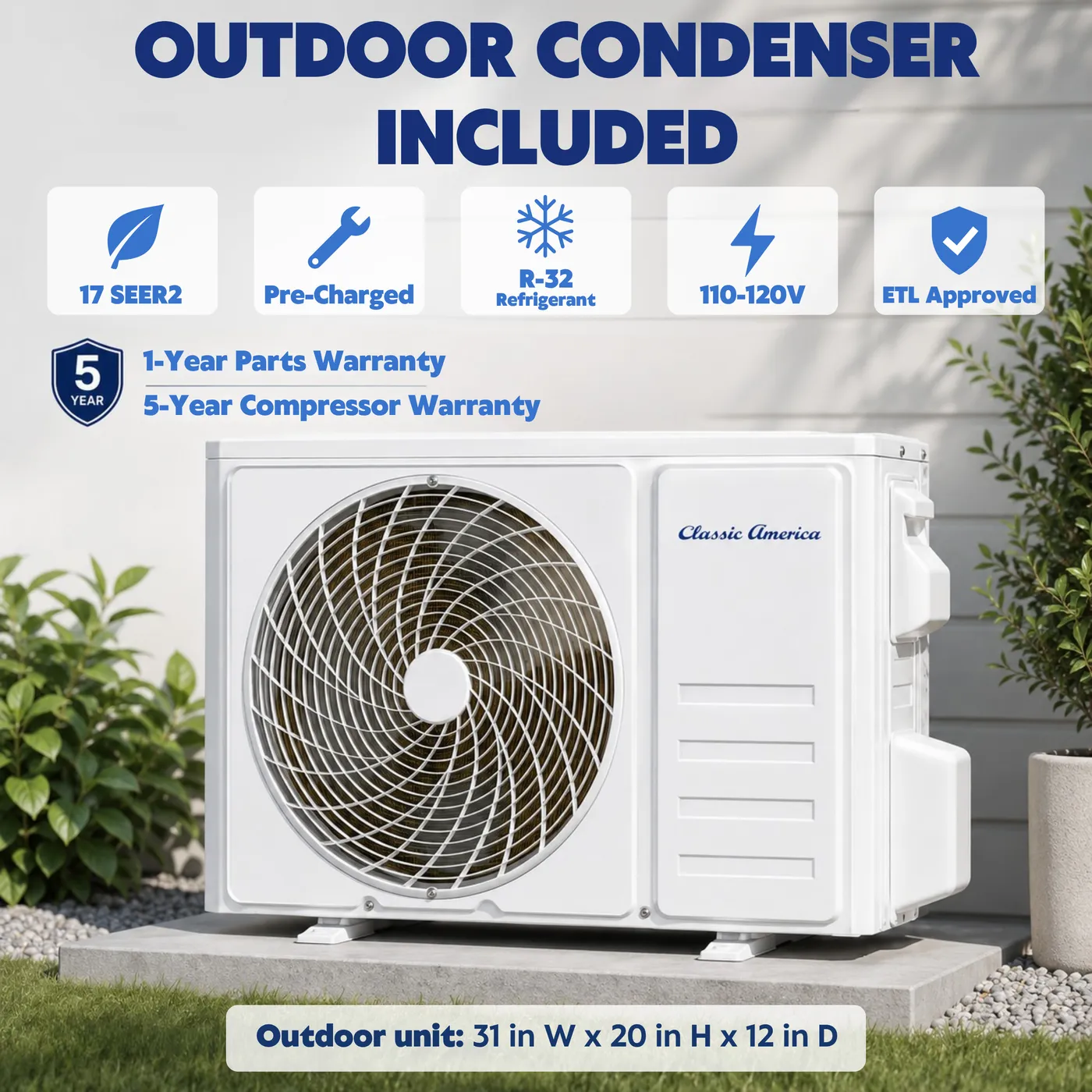

Outdoor unit
30.98 x 11.42 x 19.61 in, 60 lb gross, with line set
Line set
16 ft included, Gas 3/8", Liquid 1/4"
Smart control, included
Every system ships with the app, voice control and a physical remote -- no add-on hub required.
WiFi App
Included
Tuya Smart
Voice Control
Included
Amazon Alexa
Remote
Included

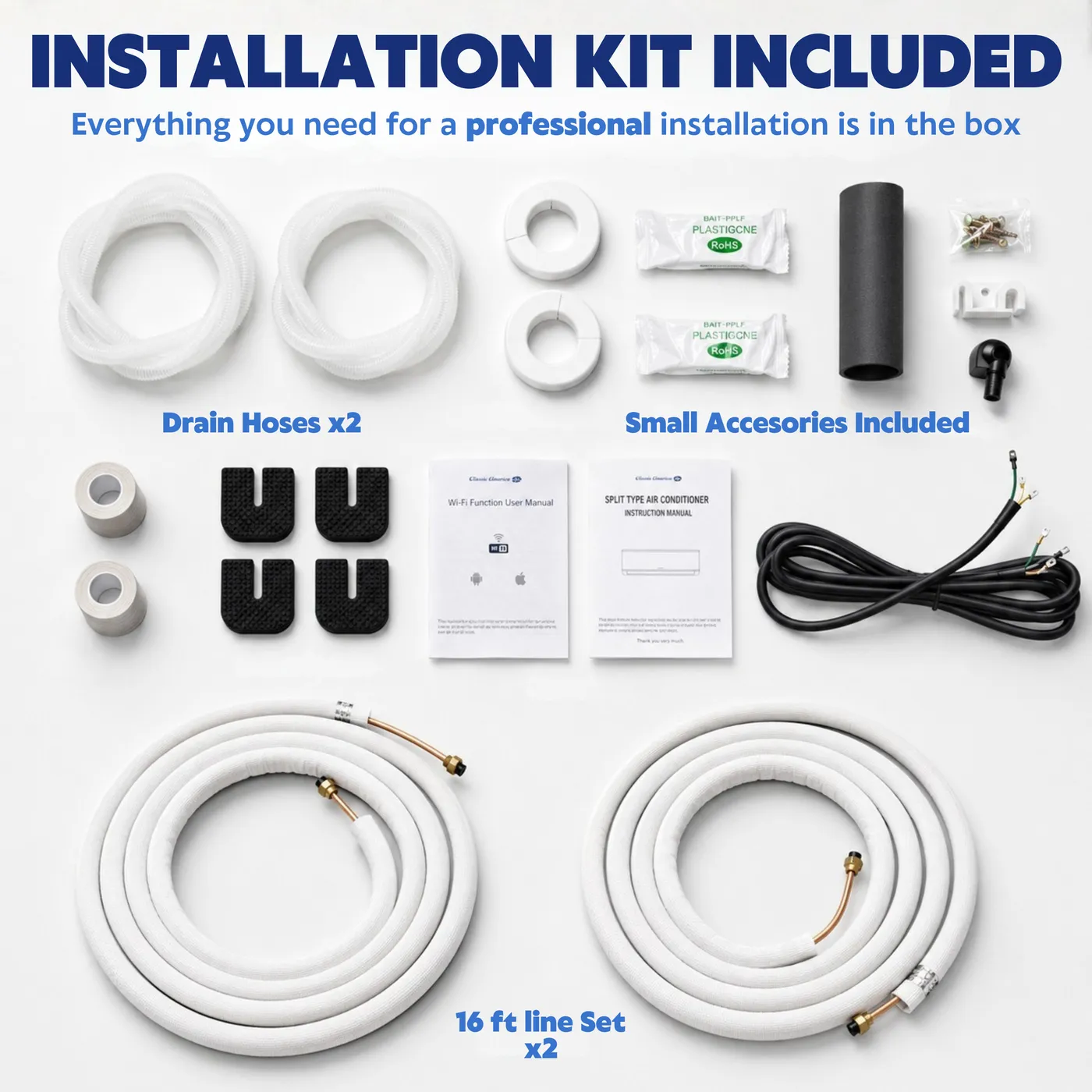

In the box
Modes
5
Auto/Cool/Heat/Dry/Fan
Highlights
How it works, inside
A look at the parts inside every Classic America inverter heat pump.
What's inside the indoor unit
Filters, evaporator coil, cross-flow fan and the Wi-Fi control board, layer by layer.
Why an inverter compressor
It speeds up and slows down to hold your set temperature instead of cycling on and off.
One system, cooling and heating
The heat pump reverses its refrigerant flow to move heat out in summer and in during winter.
Performance, published in full
Cooling efficiency
17 SEER2, 9.5 EER2
Heating efficiency (HSPF2)
Region IV: 9.5, Region V: 8.1
Sound level, in context
Outdoor unit: 53 dB
Full specifications
| Model number | MSCR32-12CHSA1 |
| Cooling capacity | 11500 BTU |
| Heating capacity | 11500 BTU |
| SEER2 | 17 |
| EER2 | 9.5 |
| HSPF2, Region IV | 9.5 |
| HSPF2, Region V | 8.1 |
| Voltage | 115V~/60Hz/1P |
| Circuit | Min. Circuit Ampacity 17A |
| Breaker | 25A |
| Connecting wiring | 4 x 16AWG |
| Coverage | Up to 550 sq ft |
| Indoor sound | 29-43 dB(A) (Mute/Low/Med/High/Turbo: 29/33/36/40/43) |
| Outdoor sound | 53 dB(A) |
| Refrigerant | R32, 500g / 17.63oz |
| Line set included | 16 ft |
| Max line length | 49 ft |
| Precharge line length | 25 ft |
| Boxed weight (indoor / outdoor) | 23 (indoor) / 60 (outdoor with pipe) |
| Boxed dimensions | 33.07 x 10.24 x 12.4 (indoor) / 32.99 x 13.31 x 21.26 (with pipe) (outdoor) |
Specifications per manufacturer spec sheet; fields not listed are not published. Coverage follows the maximum of the matching band on the ENERGY STAR room air conditioner sizing chart.
