Home / Mini Splits / 23,000 BTU Mini Split AC with Heat Pump
Mini Splits / SKU MSCR32-23CHSA2
23,000 BTU Heat Pump for 24,000 BTU Mini Split Shoppers
2-ton class · 17 SEER2 · 208/230V inverter heat pump · up to 1,400 sq ft
- Free freight shipping, arrives on a pallet in one box
- 30-day money back, uninstalled, original condition
- 5-year compressor, 1-year parts
Overview
Looking for a split heat pump for up to 1,400 sq ft? Buy it here, direct from our Miami Gardens, FL team, with free freight shipping in one box.
Looking for a 24,000 BTU mini split? Our 2-ton-class model is rated at 23,000 BTU of cooling. Shoppers comparing 24K units are usually sizing for the same kind of space: a large living room, an open kitchen and family area, or an addition.
Classic America 23,000 BTU Mini Split AC with Heat Pump (MSCR32-23CHSA2): $1,450.00, in stock. 17 SEER2 · R32 refrigerant · 208/230V single phase · up to 1,400 sq ft under typical conditions · heats and cools · 16 ft line set included · 5-year compressor / 1-year parts warranty. Free shipping on retail orders.
Since one ton equals 12,000 BTU per hour, 23,000 BTU works out to about 1.9 tons, and it's sold as a 2-ton class unit. Its inverter adjusts output across a range of 5,120 to 24,500 BTU/h as the room needs it, but its rated cooling capacity is 23,000 BTU/h at 95°F. Rated heating is 22,400 BTU/h at 47°F, 13,500 BTU/h at 17°F, and 12,000 BTU/h at 5°F (max). Check your room with the free size finder before you buy, and plan a dedicated circuit and a licensed HVAC install with the install planner.
Cooling two rooms instead of one big space? The DUET dual-zone system runs two 9,000 BTU indoor heads from one 18,000 BTU outdoor unit, rated 24 SEER2 non-ducted, for $2,065.00. Need less capacity in one room? Compare the 12,000 BTU 19 SEER2. Questions? Call 1-800-349-4360 Ext. 204 (Mon–Fri, 10 AM–3 PM ET).
Key features
- 23,000 BTU/h cooling at 95°F · range 5,120–24,500 BTU/h
- 22,400 BTU/h heating at 47°F · 13,500 at 17°F · 12,000 at 5°F (max) · range 5,120–24,500 BTU/h
- 17 SEER2 · 9.5 EER2 · HSPF2 9.5 (Region IV) and 8.5 (Region V) · COP2 3.3 at 47°F and 1.8 at 5°F
- Moisture removal 122 pints/day (2.4 L/h) · indoor airflow 352–676 CFM · coverage up to 1,400 sq ft
- 208/230V, 60 Hz, single phase · 2,365 W cooling and 1,900 W heating · 12 A cooling and 13 A heating · MCA 17 A · max fuse 25 A · 4 x 16 AWG
- R32 · gas 1/2 in · liquid 1/4 in · 16 ft line set included · pre-charged 25 ft · max length 65 ft · max height difference 49 ft · additional charge 0.11 oz/ft · max pressure 725 PSIG (5.0 MPa)
- Indoor 37–50 dB(A) · outdoor 56 dB(A) · set temperature 62–86°F · outdoor 53.6–122°F cooling and 5–86°F heating
- Indoor 39.6 x 12.6 x 9.18 in, 33 lb gross · outdoor 32.5 x 13.5 x 23.5 in, 81.5 lb gross, with the line set
- Remote plus Wi-Fi in the Tuya app
- Free shipping on retail orders · 5-year compressor, 1-year parts · 30-day money-back
- Model MSCR32-23CHSA2
What you need to install it
Licensed HVAC install is recommended. Read the delivery and installation guide.
Power
208/230V~/60Hz/1P
Indoor unit
39.6 x 12.6 x 9.18 in, 33 lb gross
Outdoor unit
32.5 x 13.5 x 23.5 in, 81.5 lb gross, with line set
Line set
16 ft included, Gas 1/2", Liquid 1/4"
Smart control, included
Ships with Wi-Fi app control and a physical remote -- no add-on hub required.
WiFi App
Included
Tuya Smart
Remote
Included
In the box
Modes
5
Auto/Cool/Heat/Dry/Fan
How it works, inside
A look at the parts inside every Classic America inverter heat pump.

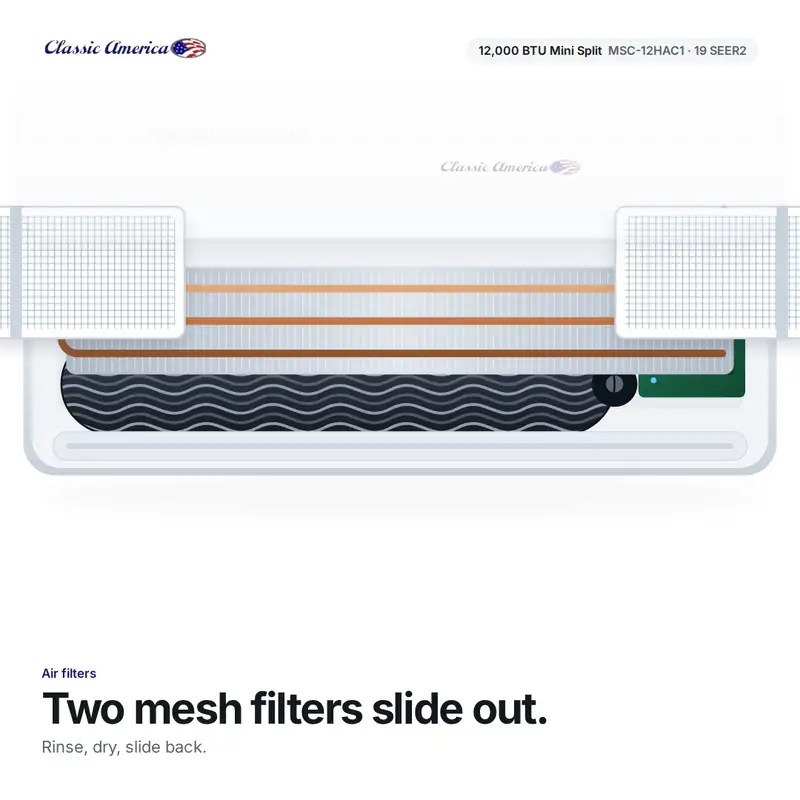

What's inside the indoor unit
Filters, evaporator coil, cross-flow fan and the Wi-Fi control board, layer by layer.

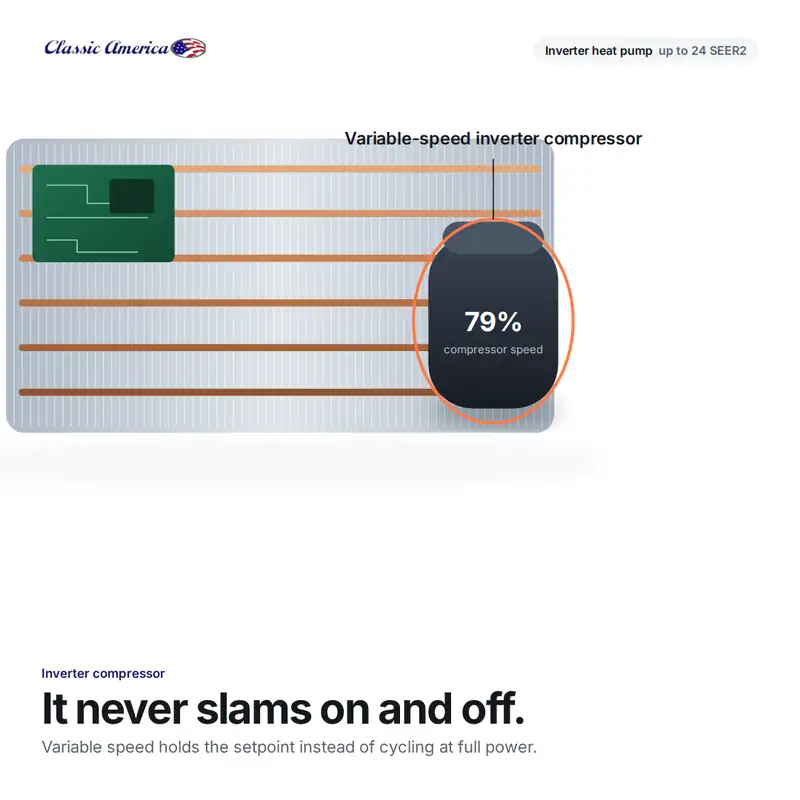

Why an inverter compressor
It speeds up and slows down to hold your set temperature instead of cycling on and off.

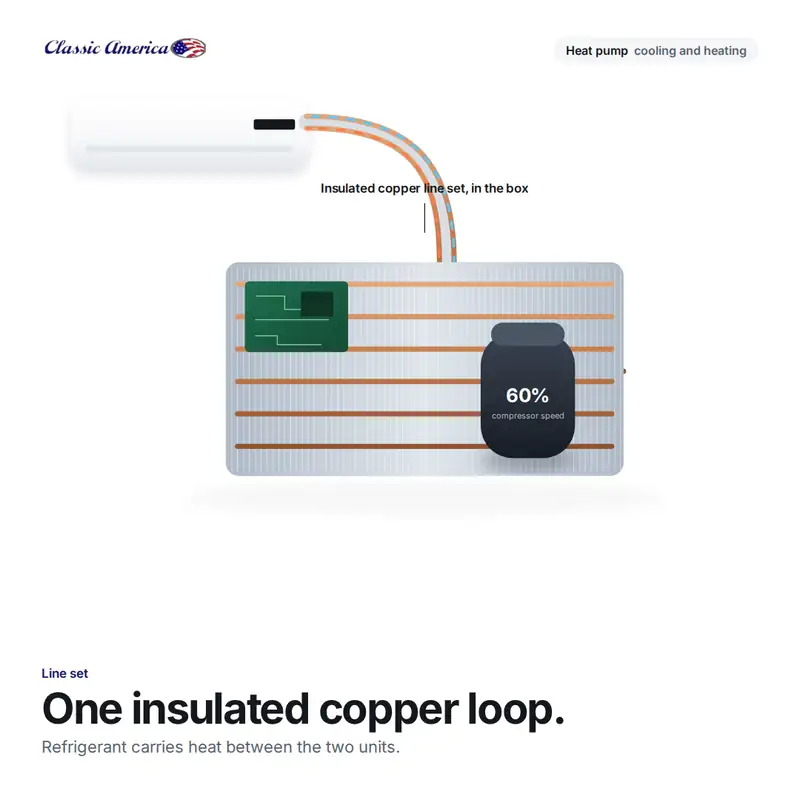

One system, cooling and heating
The heat pump reverses its refrigerant flow to move heat out in summer and in during winter.
Performance, published in full
Cooling efficiency
17 SEER2, 9.5 EER2
Heating efficiency (HSPF2)
Region IV: 9.5, Region V: 8.5
Sound level, in context
Outdoor unit: 56 dB
Full specifications
| Model number | MSCR32-23CHSA2 |
| Cooling capacity | 23,000 BTU/h at 95°F |
| Heating capacity | 22,400 BTU/h at 47°F |
| Cooling range | 5,120–24,500 BTU/h |
| Heating range | 5,120–24,500 BTU/h |
| Heating at 17°F | 13,500 BTU/h |
| Heating at 5°F (max) | 12,000 BTU/h |
| COP2 | 3.3 at 47°F, 1.8 at 5°F |
| Moisture removal | 122 pints/day |
| Rated input | 2,365 W cooling, 1,900 W heating |
| Rated current | 12 A cooling, 13 A heating |
| Min. circuit ampacity | 17 A |
| Max fuse / breaker | 25A |
| Connecting wiring | 4 x 16 AWG |
| Max height difference | 49 ft |
| Additional charge | 0.11 oz/ft |
| Max operating pressure | 725 PSIG (5.0 MPa) |
| Indoor airflow | 352–676 CFM |
| Indoor sound | 37-50 dB(A) |
| Outdoor sound | 56 dB(A) |
| Set temperature | 62–86°F |
| Outdoor operating range, cooling | 53.6–122°F |
| Outdoor operating range, heating | 5–86°F |
| Refrigerant | R32 |
| Line set included | 16 ft |
| Max line length | 65 ft |
| Precharge line length | 25 ft |
| Boxed weight (indoor / outdoor) | 33 (indoor) / 81.5 (outdoor with line set) |
| Boxed dimensions | 43.14 x 15.35 x 11.69 (indoor) / 35.03 x 15.15 x 24.72 (without pipe) (outdoor) |
Specifications per manufacturer spec sheet; fields not listed are not published. Coverage follows the maximum of the matching band on the ENERGY STAR room air conditioner sizing chart.
Manuals and downloads
PDF. More documents on the manuals page.
FAQ
23,000 BTU mini split questions
Where can I buy a split heat pump for 1,400 sq ft?
Right here. The MSCR32-23CHSA2 is a 23,000 BTU (24K, 2-ton class) mini split heat pump rated for up to 1,400 sq ft. It costs $1,450 with free freight shipping, a 16 ft line set and a 5-year compressor, 1-year parts warranty. Call 1-800-349-4360 Ext. 204 with questions.
Do you sell a 24,000 BTU mini split?
Our 2-ton-class single-zone unit is the 23,000 BTU MSCR32-23CHSA2. It's designed for the same large-room jobs, up to about 1,400 sq ft. Use the size finder to confirm it fits your space.
Is a 23,000 BTU mini split a 2 ton mini split?
Close to it. One ton is 12,000 BTU per hour, so 23,000 BTU/h ≈ 1.9 tons, which is sold as the 2 ton class. This Classic America unit (MSCR32-23CHSA2) delivers 23,000 BTU/h cooling at 95°F and 22,400 BTU/h heating at 47°F. Use the size finder or call 1-800-349-4360 Ext. 204 to confirm room fit.
How many square feet will this system cover?
It is rated for up to 1,400 sq ft under typical conditions. High ceilings, poor insulation, heavy sun or open floor plans can need a different size. Compare models on the compare tool or buying guide.
What voltage does this mini split need?
It is 208/230V, 60 Hz, single phase, not 115V. Rated input is 2,365 W cooling and 1,900 W heating. Rated current is 12 A cooling and 13 A heating. Minimum circuit ampacity is 17 A, the max fuse or breaker is 25 A, and the connecting wiring is 4 x 16 AWG. Have a licensed electrician confirm a dedicated circuit before install. Smaller Classic America models (9k / 12k) use 115V if that matches your panel: see the 110V mini split hub.
How well does it heat in cold weather?
Rated heating is 22,400 BTU/h at 47°F, 13,500 BTU/h at 17°F, and 12,000 BTU/h at 5°F (max). The heating range is 5,120–24,500 BTU/h. HSPF2 is 9.5 in Region IV and 8.5 in Region V. COP2 is 3.3 at 47°F and 1.8 at 5°F. The outdoor heating range is 5–86°F.
How do I control this mini split?
The box includes a remote, and the unit connects to Wi-Fi through the Tuya app. You can set the temperature from 62–86°F.
