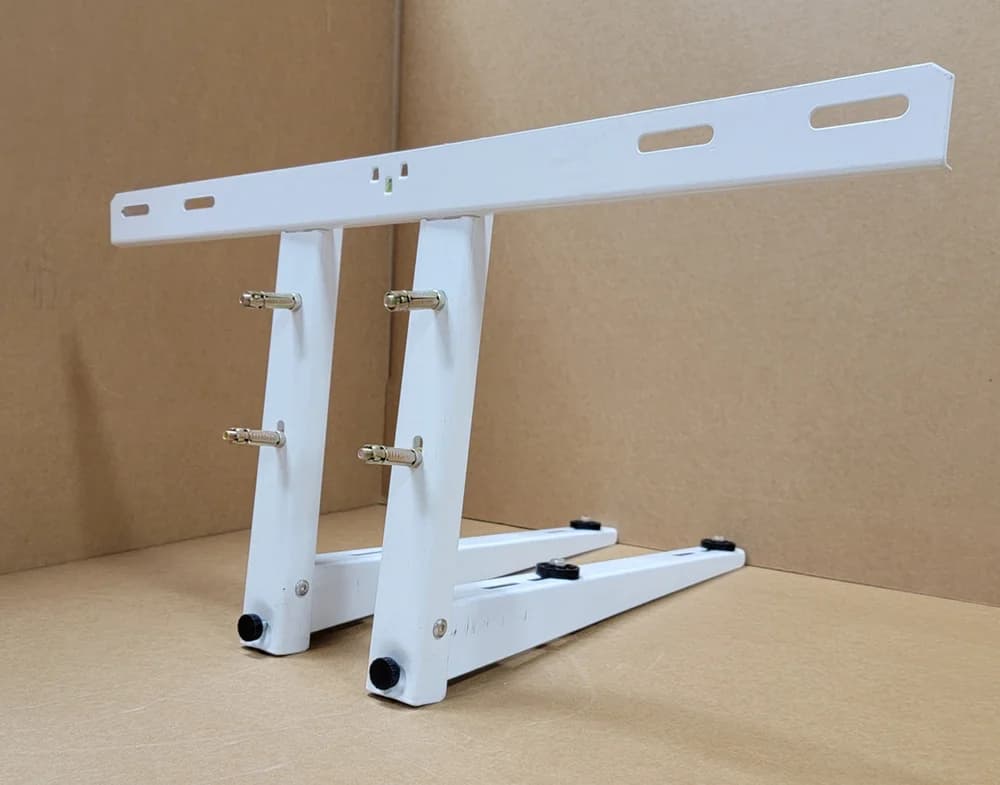

BRA-2002 Universal Outdoor Wall Mount Bracket
- Free shipping
- 1 year warranty
The BRA-2002 is a universal outdoor wall-mount bracket for a ductless mini split condenser. Use it when the outdoor unit needs to hang on an exterior wall instead of sitting on a ground pad. The catalog lists it for 9,000, 12,000, 18,000, and 24,000 BTU units. That BTU range is the fit we publish.
A weight rating in pounds is not on this product's data, so this page does not give one. Match the bracket to those BTU sizes, and have the wall and the fasteners checked for the condenser you are hanging.
The bracket has an adjustable-width crossbar with a built-in level. You bolt that crossbar to the wall with the bolts and anchors that come in the kit. Two L-shaped arms hang from the crossbar, and those arms fold. The outdoor unit sits on the arms and is fastened with the bolts and anti-vibration feet included in the kit. The feet keep the condenser from being hard-mounted against the steel.
The bracket is the hardware. Leveling the outdoor unit, keeping the coil clear of the wall, and leaving a path for the line set are part of the install. Refrigerant connections belong to a licensed HVAC technician. If you are still choosing a pad versus a wall, the install planner asks that question before install day.
The BRA-2002 is listed at $26.99. It is the outdoor wall-mount accessory in this catalog for those BTU sizes. The price is the bracket. It does not include the mini split, the line set, or the electrical circuit.
Product info
- Holds 9,000, 12,000, 18,000 and 24,000 BTU units
- Adjustable width crossbar
- Wall fixation unit
- Anti vibration feet
FAQ
Questions about the BRA-2002
Which units does the BRA-2002 fit?
The feature list says it holds 9,000, 12,000, 18,000, and 24,000 BTU units. That is the published fit.
What is the weight capacity?
A pound rating is not printed in our product data, so we do not state one. Use the BTU sizes above, and have the wall checked for the outdoor unit you plan to hang.
What is in the kit?
An adjustable crossbar with a built-in level, bolts and anchors for the wall, two folding L-shaped arms, and bolts plus anti-vibration feet for the outdoor unit.
Does this replace a ground pad?
It is the wall-mount option. A pad on the ground is the other common place for an outdoor unit. Pick the spot that fits the wall and the line-set path.
